The beauty of opening, the power to customize
Characteristics
- Extreme durability, flawless design with IP69(80º) protection
- Powerful and efficient lighting. Up to 157 lm/W and 10,000 lm
- Simplified installation: tool-free mounting and openable system for component replacement
- Adaptive intelligence, future-ready - it adapts to your project’s evolving needs, today and tomorrow
Applications
Technical information
_K_functional_Roboto.png "BELORIA HE"){kind=icon}
Mechanical
Profile
Extruded polycarbonate with UV protection, upper part grey RAL 7035, bottom part opal
End caps
Polycarbonate
Gasket
PWISS-free silicone
Cable entry
Cable Gland M20
Fixing clips
Stainless steel
Performance
Luminous flux
2,000 lm
Power consumption
14 W
Efficiency
143 lm/W
Lifetime
L80/B50 25°C 100000 h
Lighting quality
Light colour
4,000 K
CRI
> 80
Color consistency
01
Photometrical
Optics
Lambertian (L)

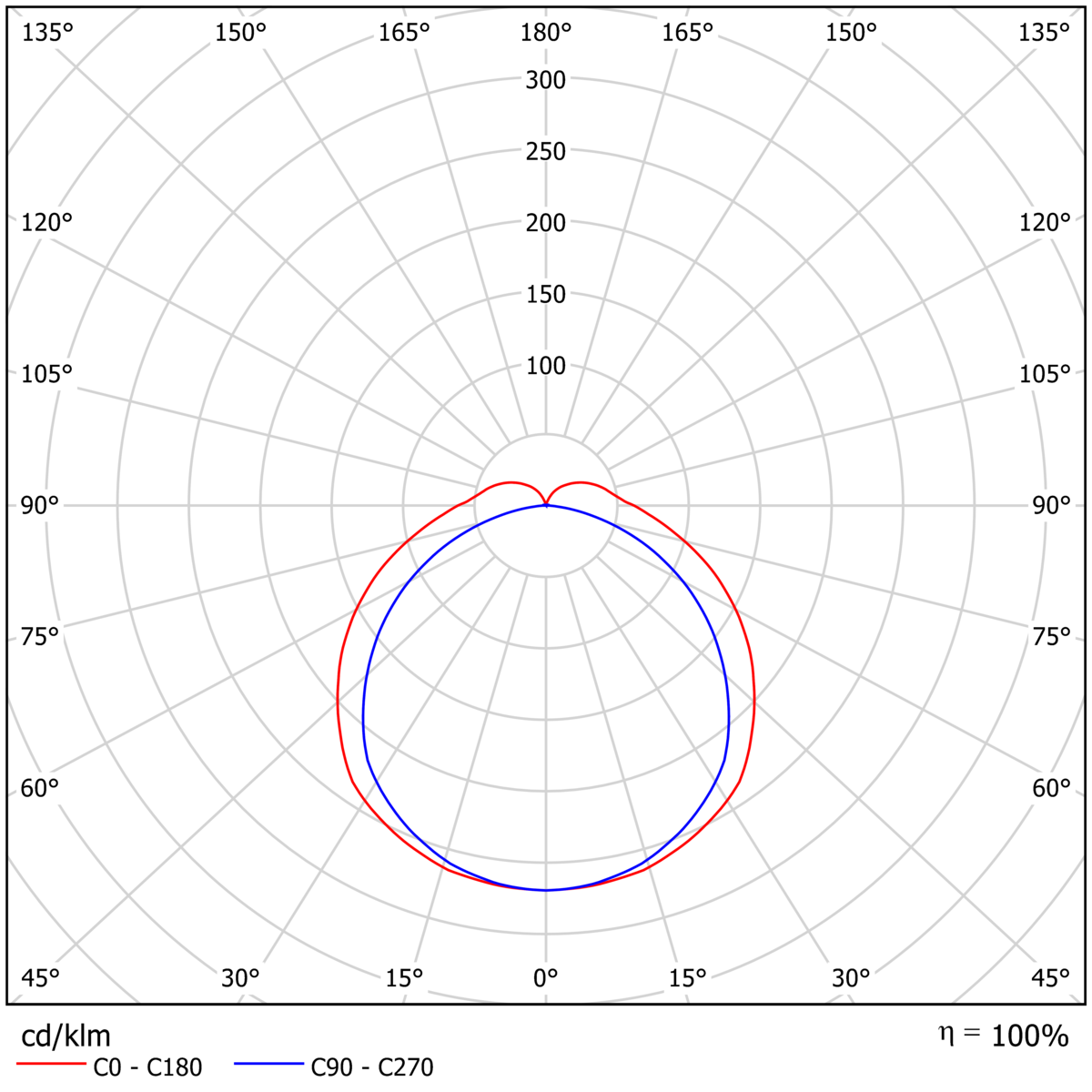

Polar diagram
Electrical
Driver
Electron. transformer (ET)
Connection
Plug-in terminal
Flicker factor
< 3%
Power factor
0.94
THD
14 %
General properties
Glow wire test
850 °C
Ambient temperature
-25 - +40 °C
Luminaire class
I
Dimensions
Length
676 mm
Width
71 mm
Height
70 mm
Net weight
1.1 kg
